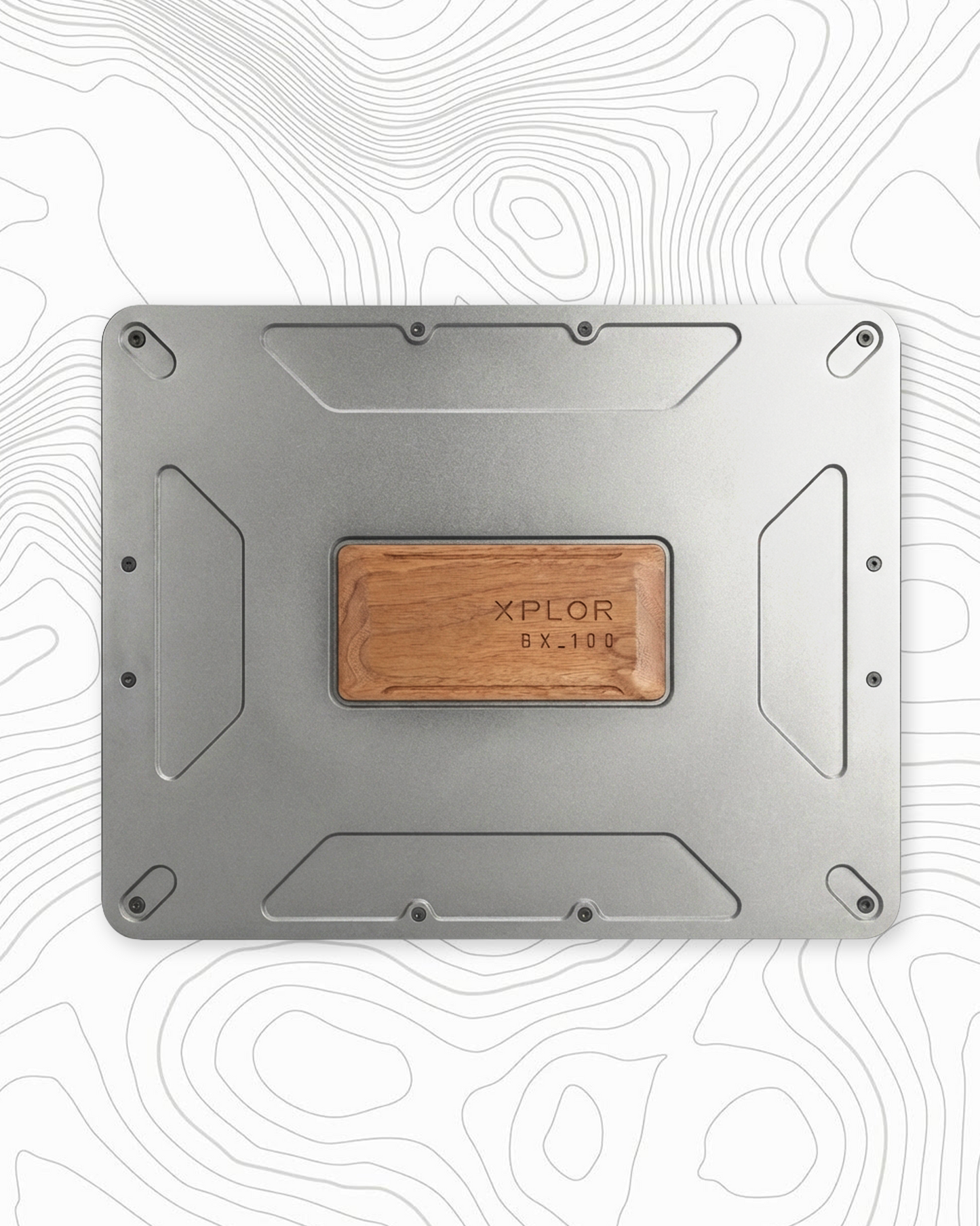

XPLOR BX-100 Solar Generator Power Bank 100ah (BX-100)

All-in-one 12V power with Victron charging inside

LOCAL PICKUP IN SOUTHERN CALIFORNIA ONLY. Limited first batch, with more units coming as we sell through.

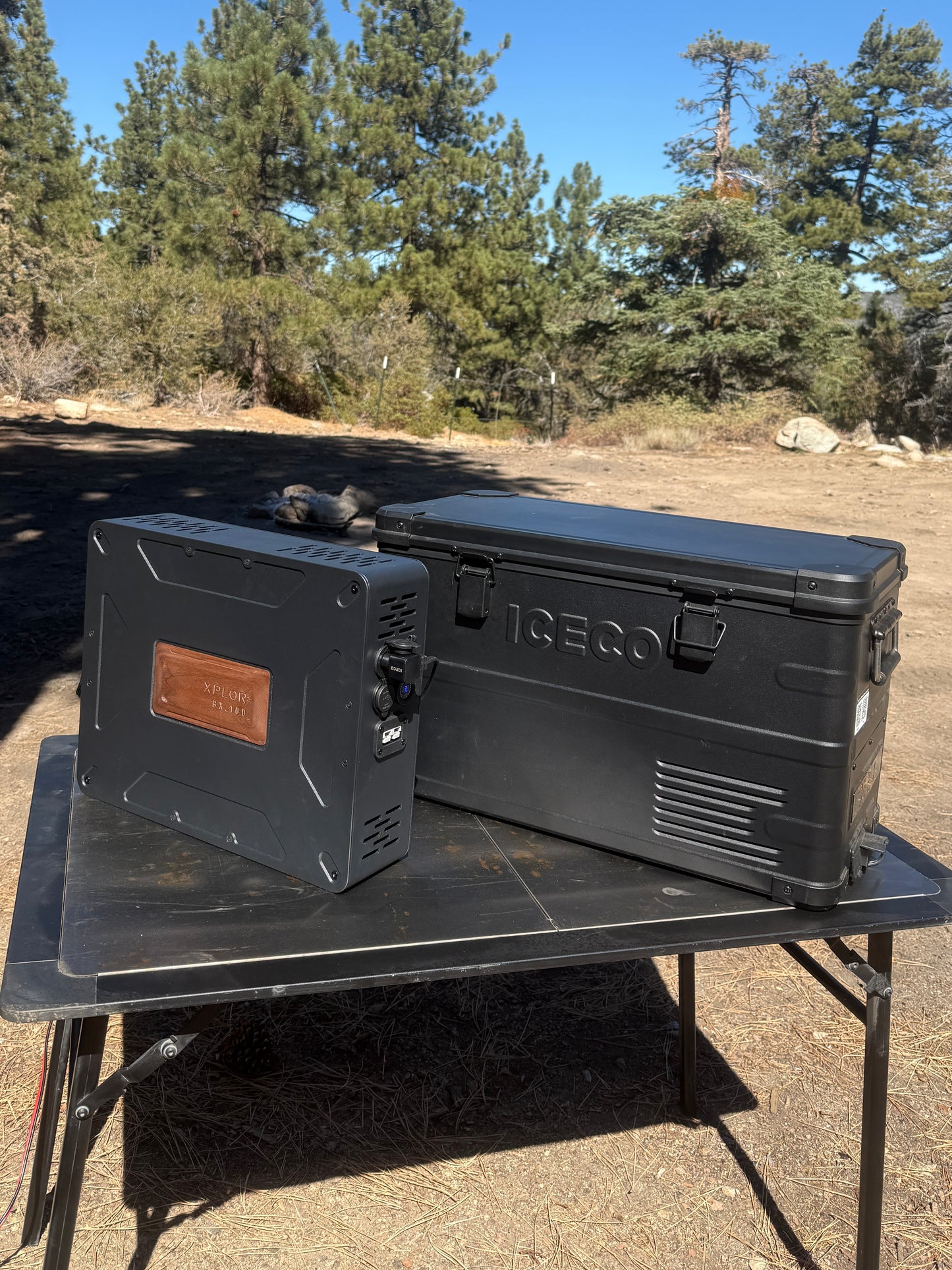

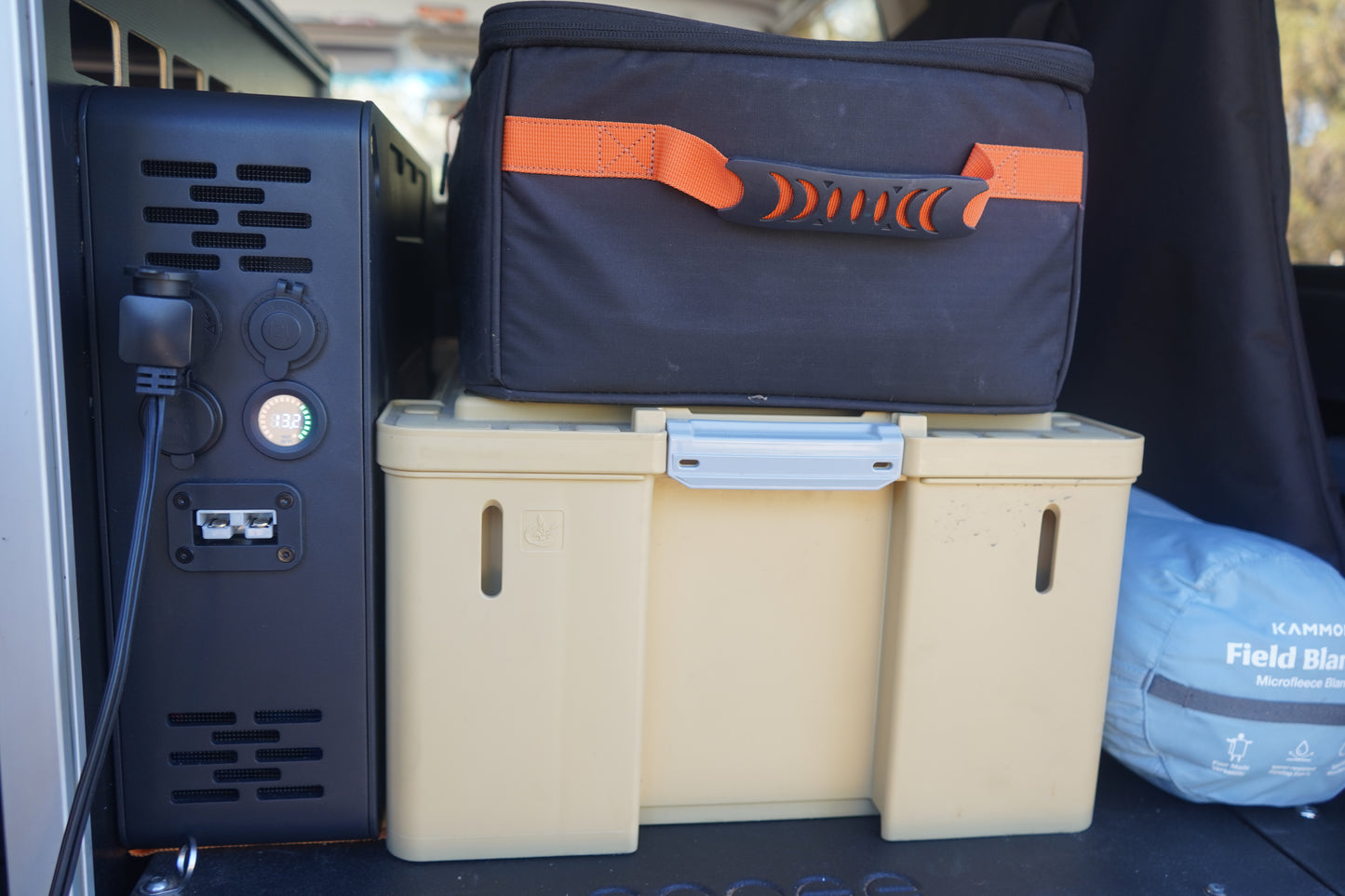

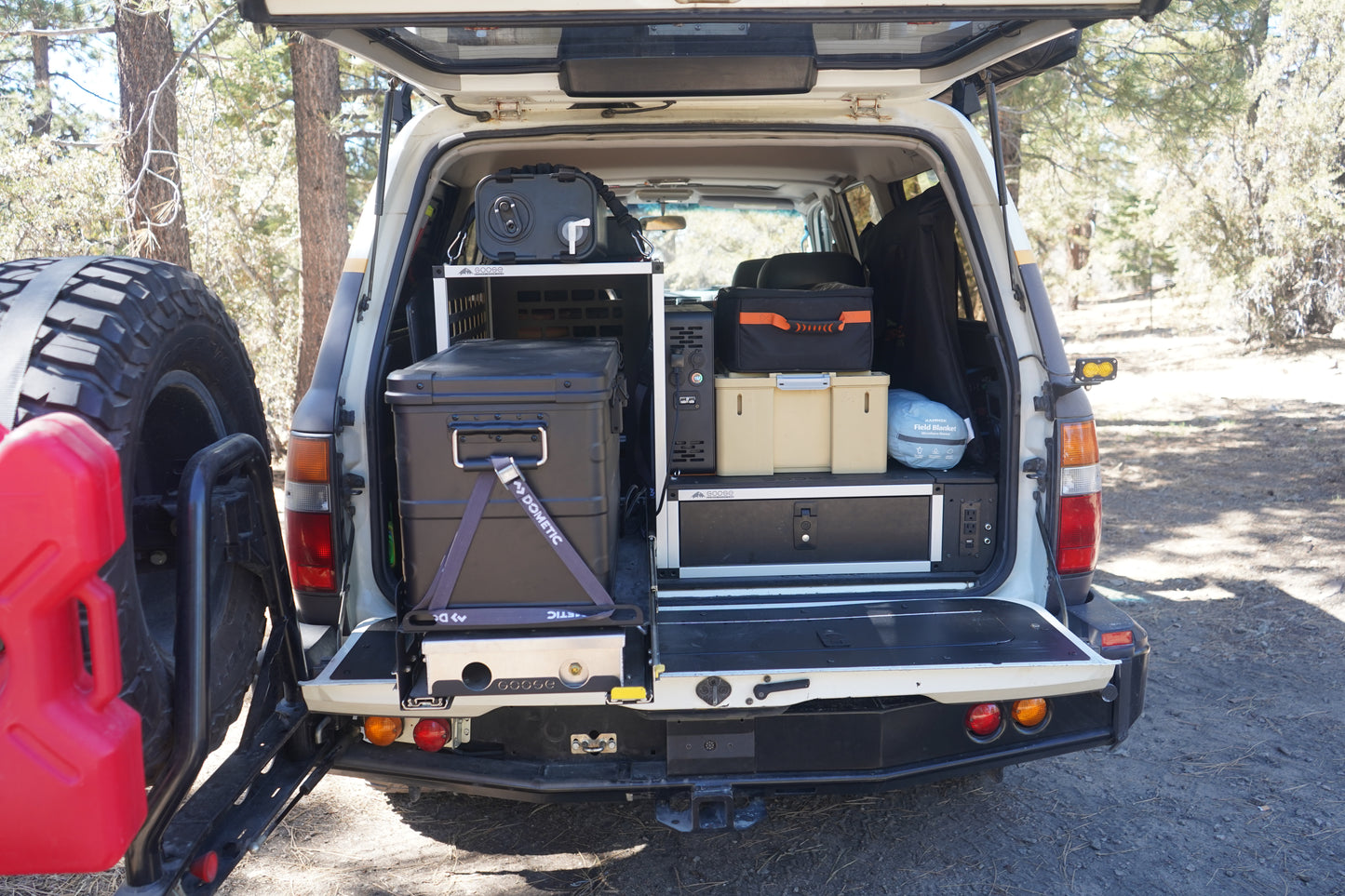

The XPLOR BX-100 puts your battery, alternator charger and solar controller in one slim aluminum box built to bolt into a rig. It’s made for overlanders, campers and anyone running a fridge, lights and devices off the vehicle: a camp kitchen, a pickup bed, a van, or a compact build with a rooftop tent and a couple hundred watts of roof solar. You connect the alternator and solar once and you’re set up.

It’s a true 12V system, so your gear runs directly with no inverter in between. That means no conversion losses and no idle drain.

Built for the vehicle

• Three components in one unit: a 100Ah LiFePO₄ battery, a Victron Orion XS 12/12-50A DC-DC charger and a Victron SmartSolar MPPT 75/15 controller. You’d otherwise buy and wire each of these separately.
• Alternator and solar charging: both sources feed the same battery through Anderson connectors, and Victron electronics manage each one.

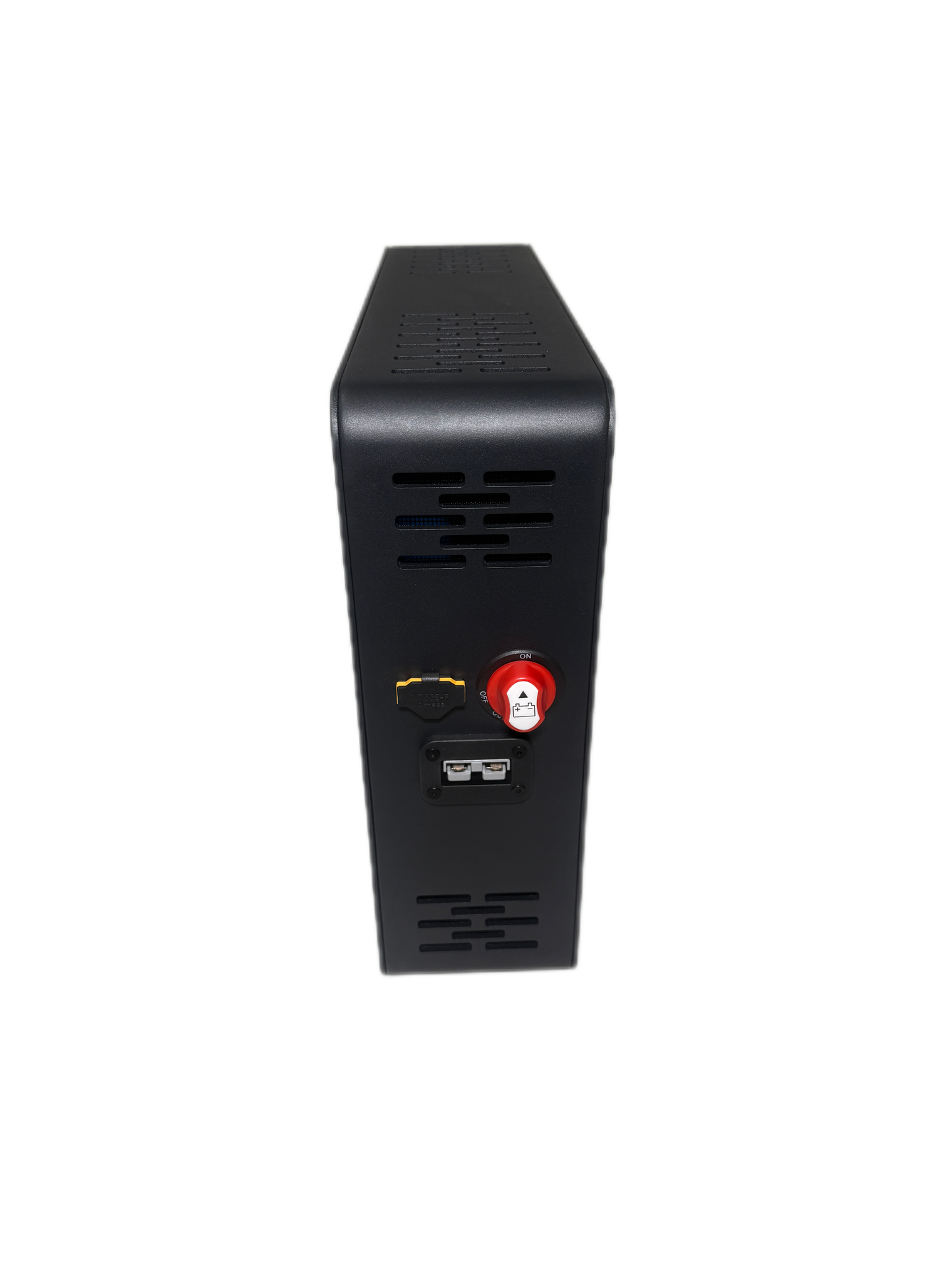

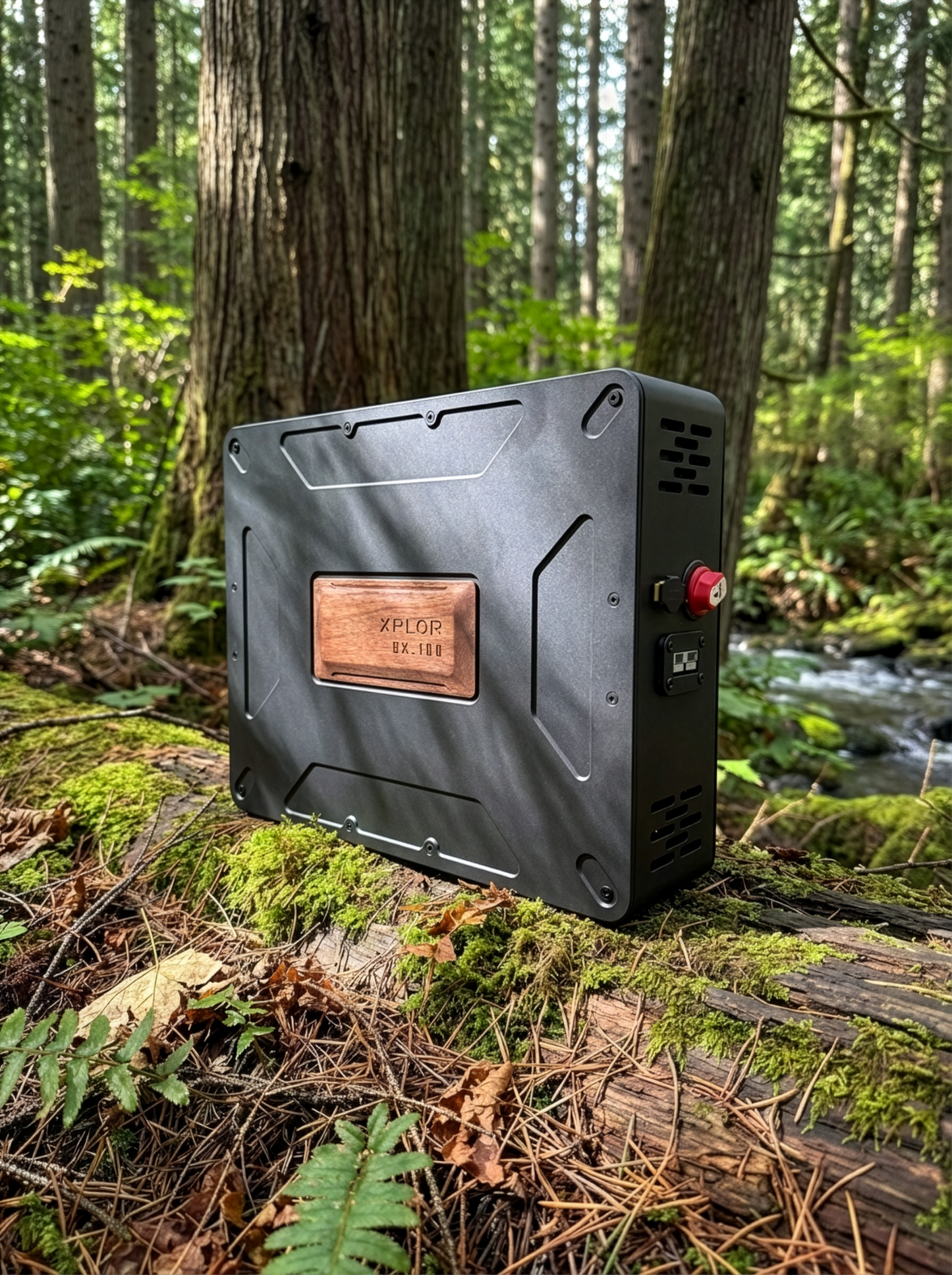

• Overland-standard hardware: Anderson inputs and outputs plus a 12V kill switch, the same connections most builds already use.

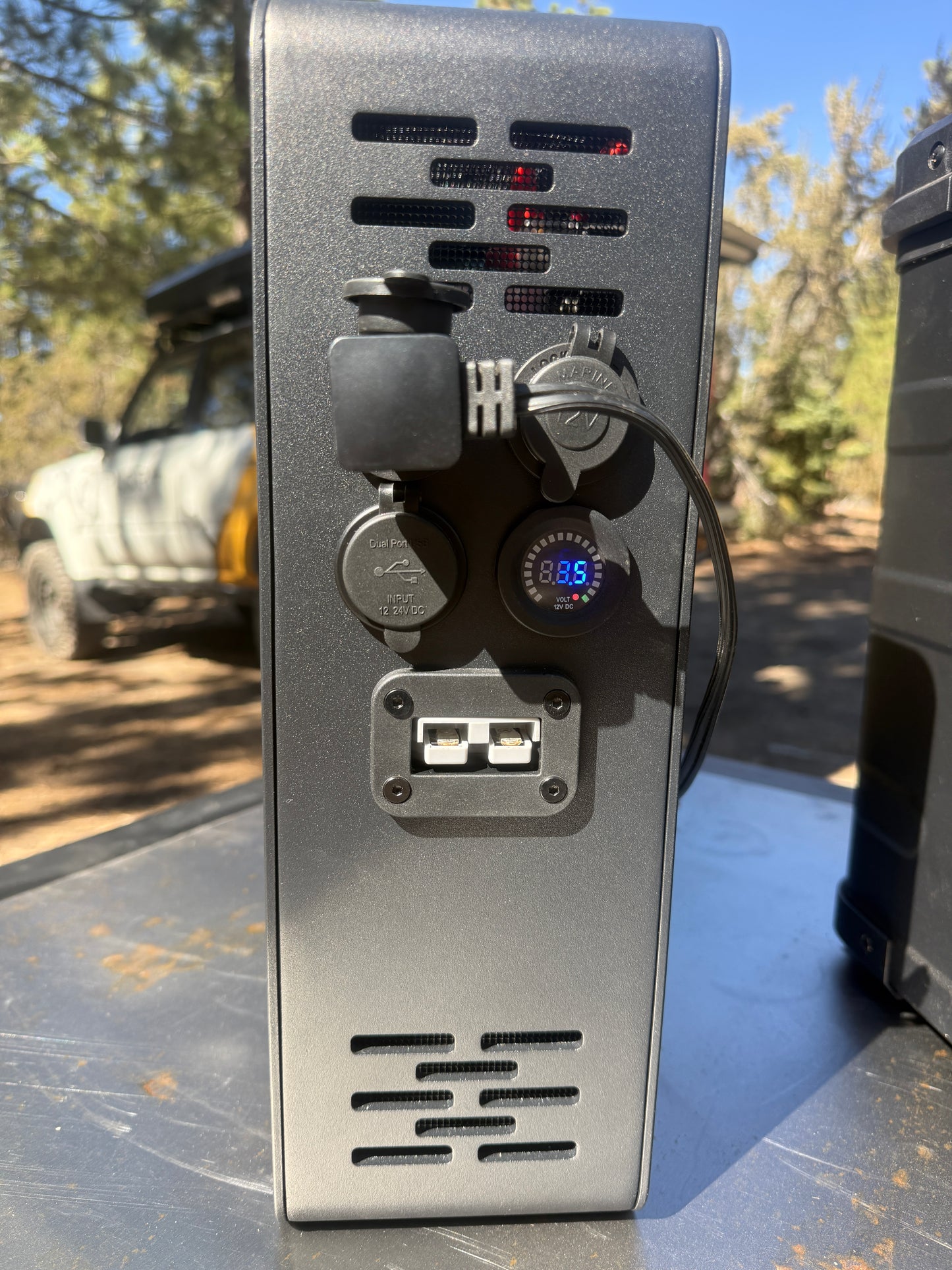

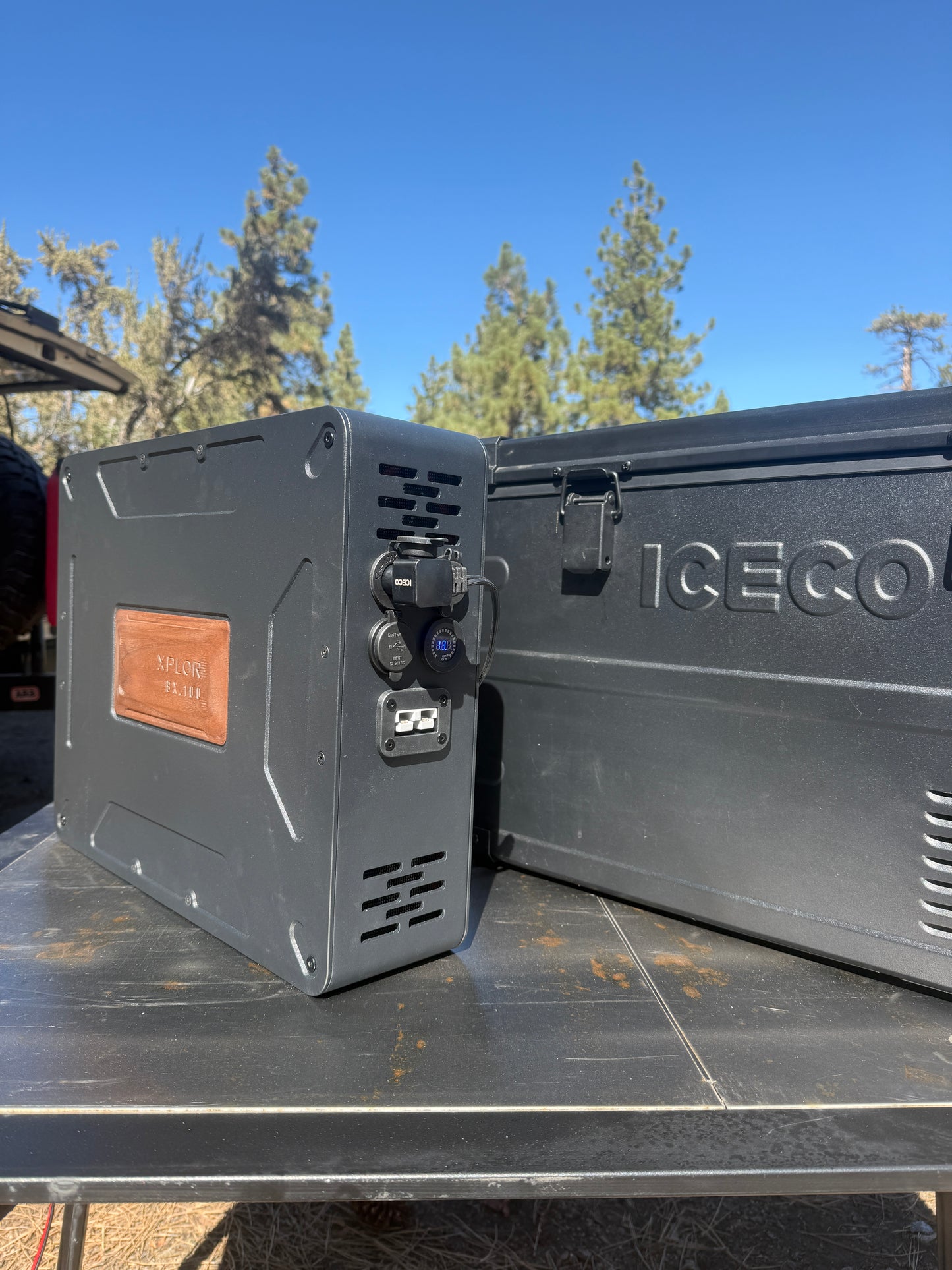

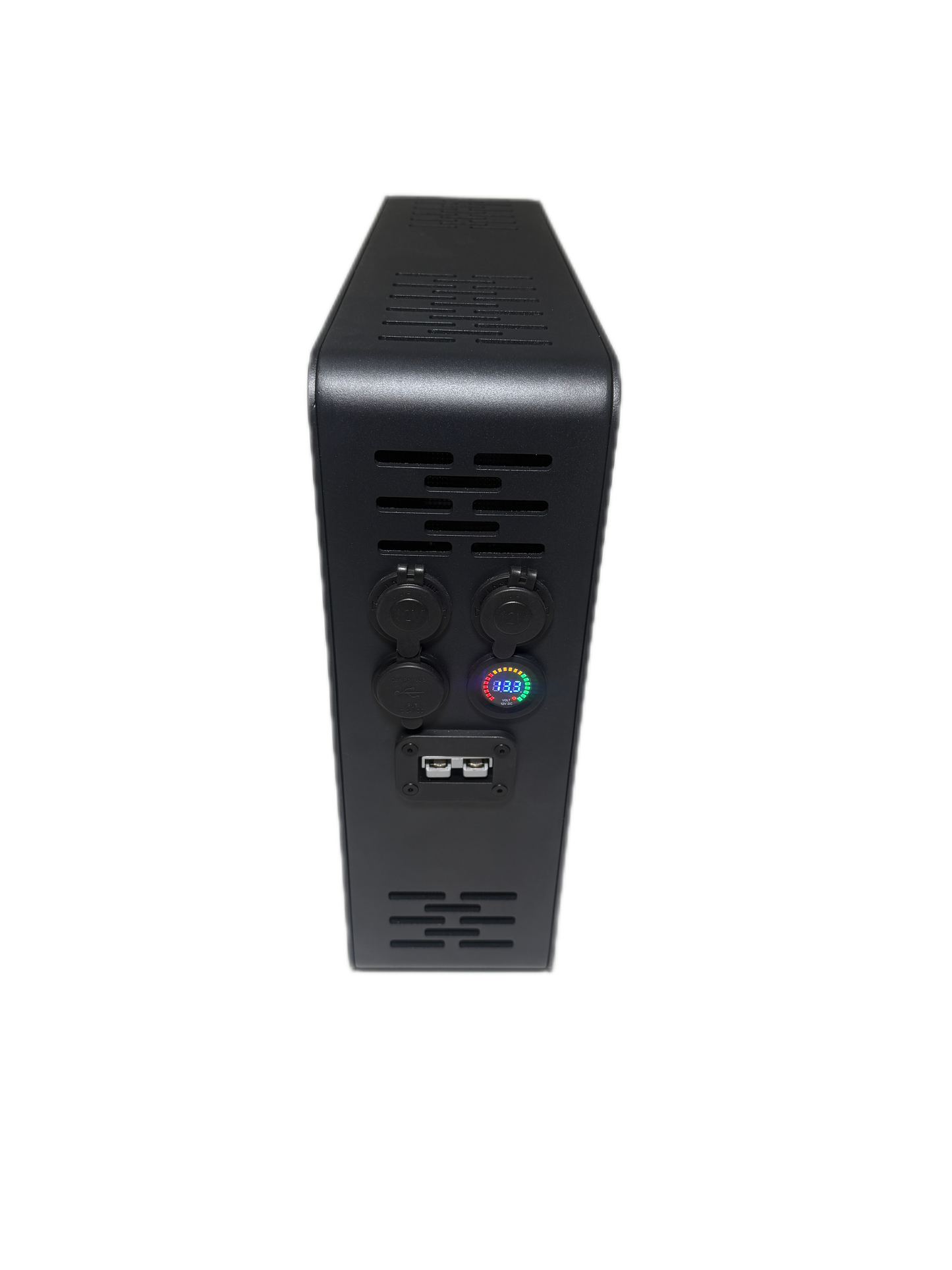

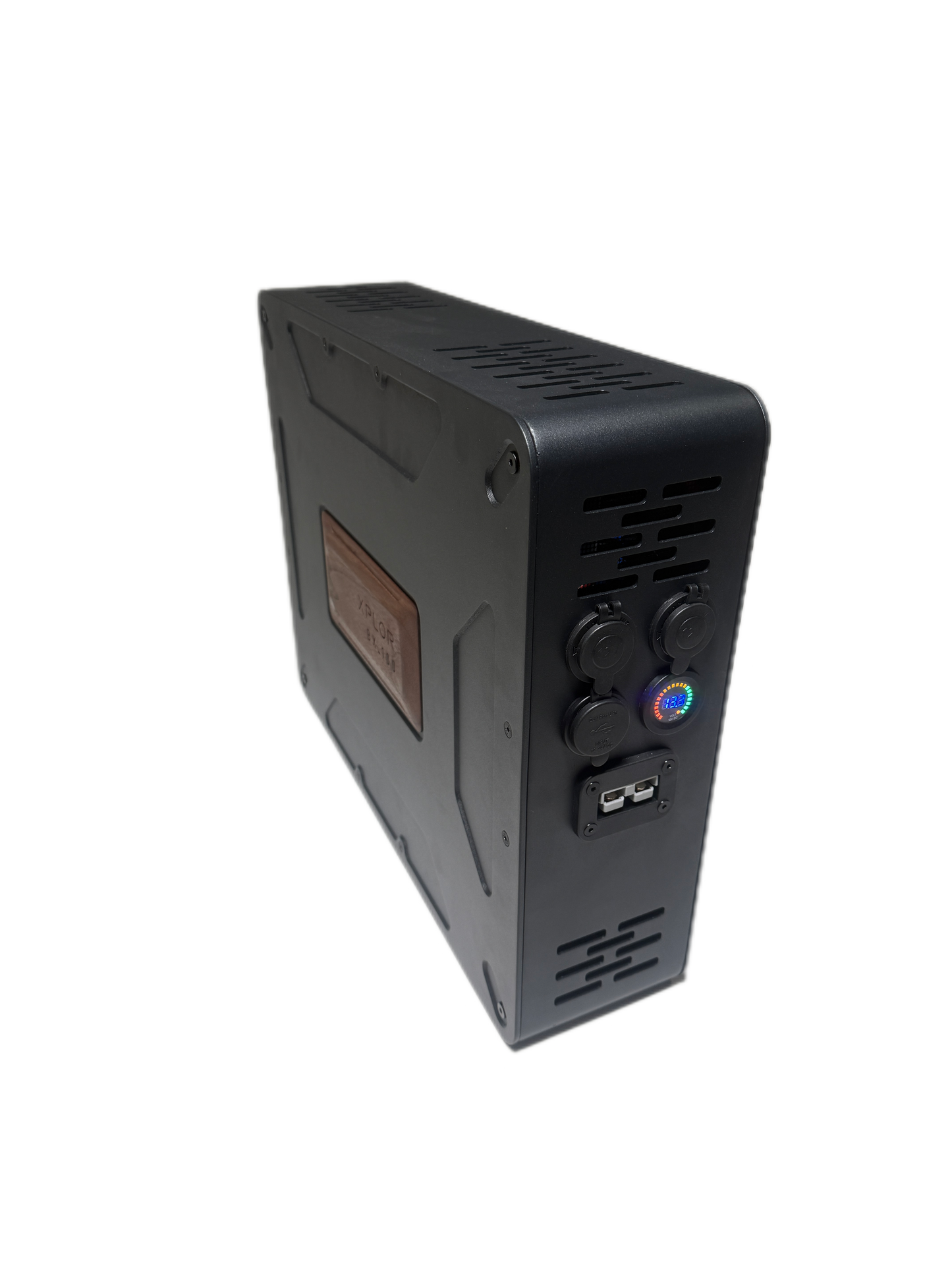

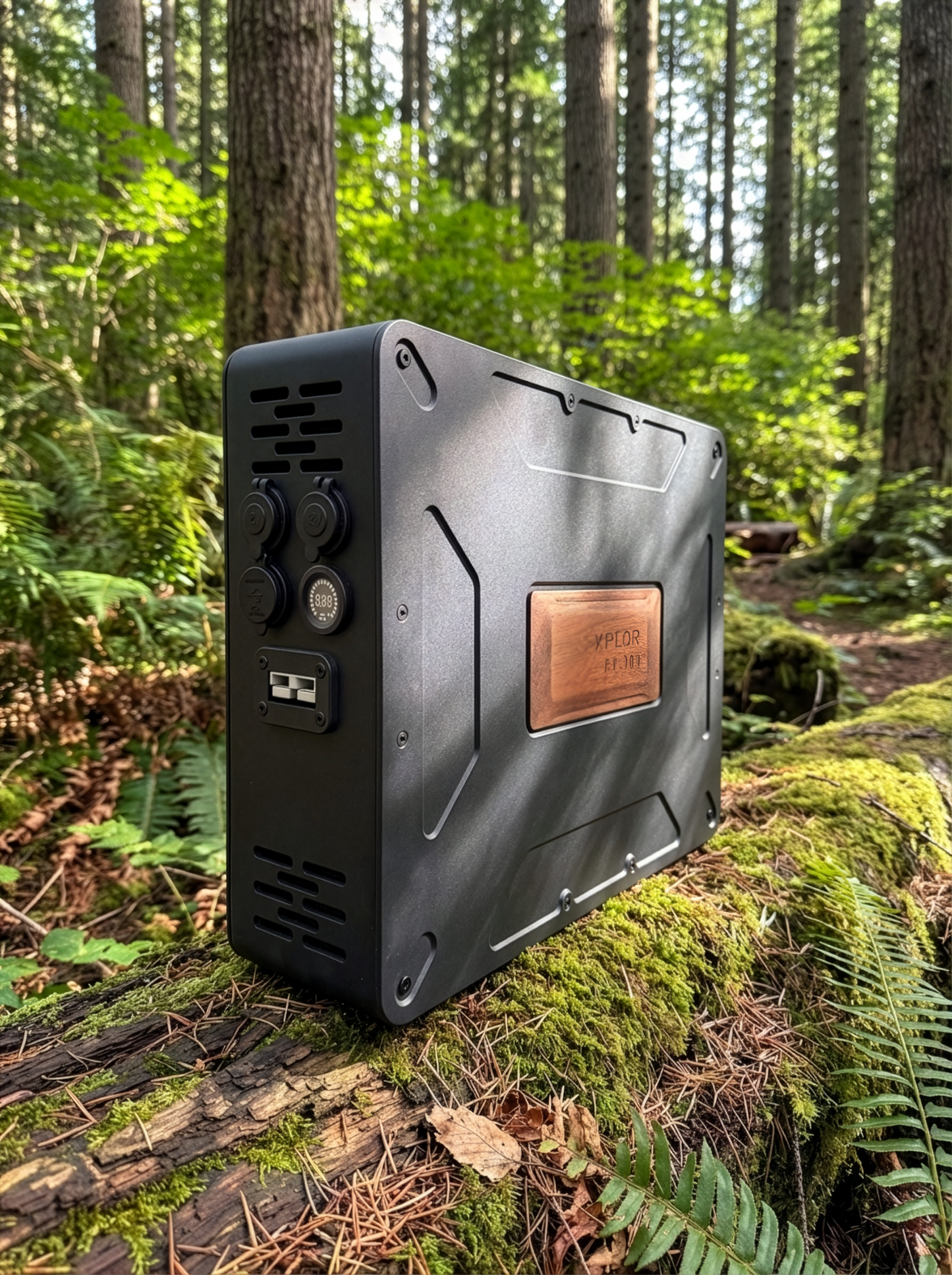

• Native 12V outputs: two 12V sockets, two USB-A, one USB-C and an Anderson output run a fridge, lights and devices directly.

Protected, usable power

• Internal fuse panel: every output is fused inside the unit, so you don’t add a fuse holder for each circuit.
• Breakers on high-current outputs: heavier loads get their own protection.
• No inverter in the path: 12V fridges, lights and USB gear skip inverter losses and idle draw.

Mount it and forget it

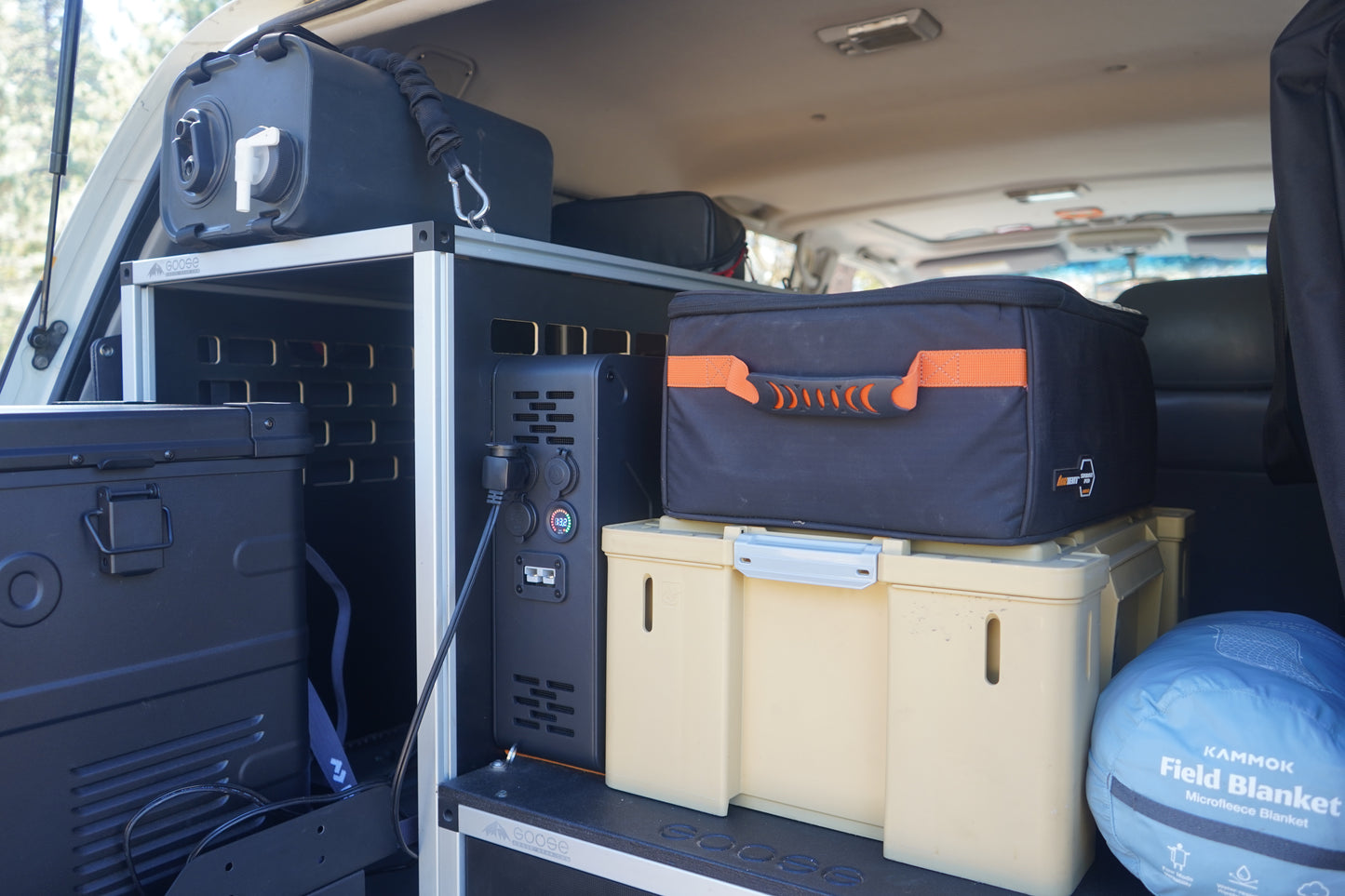

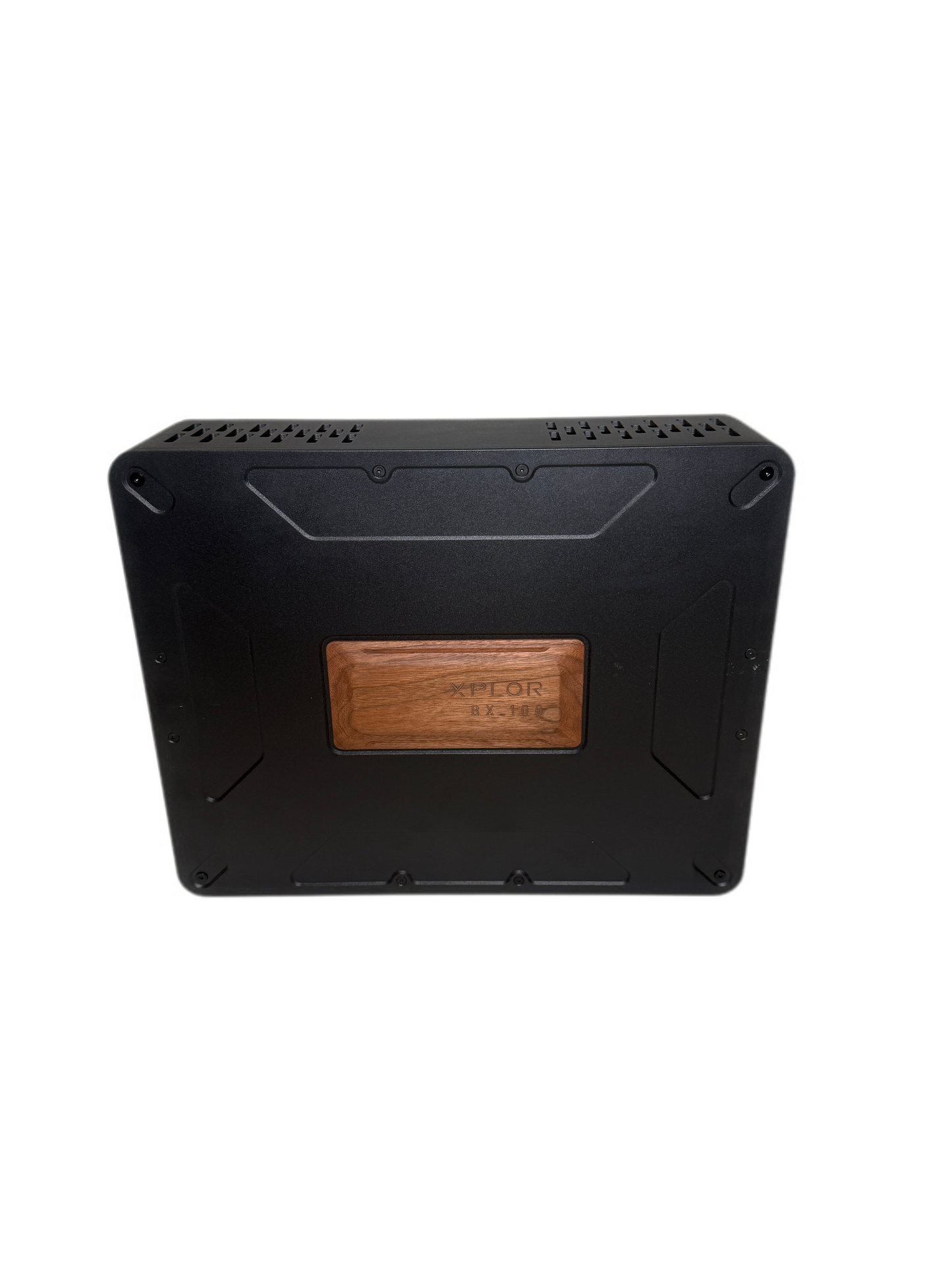

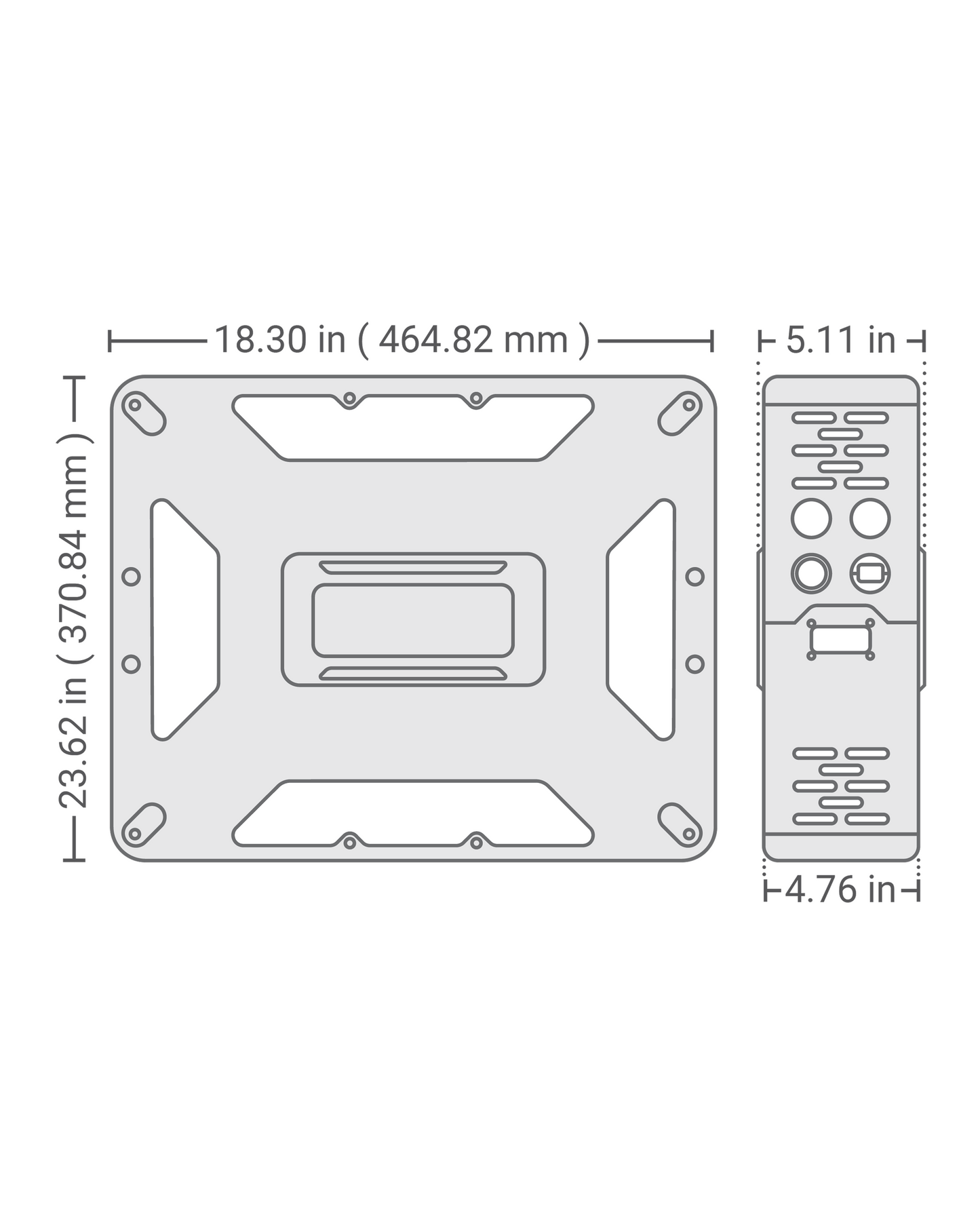

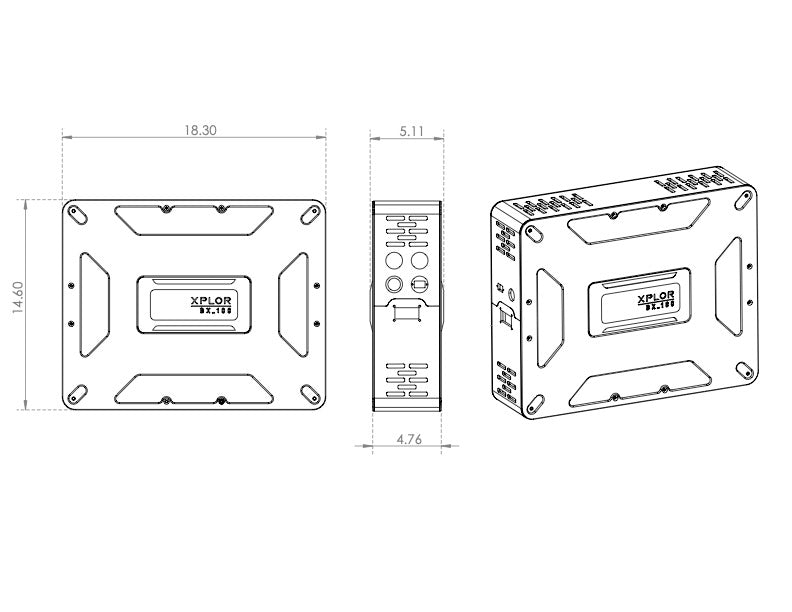

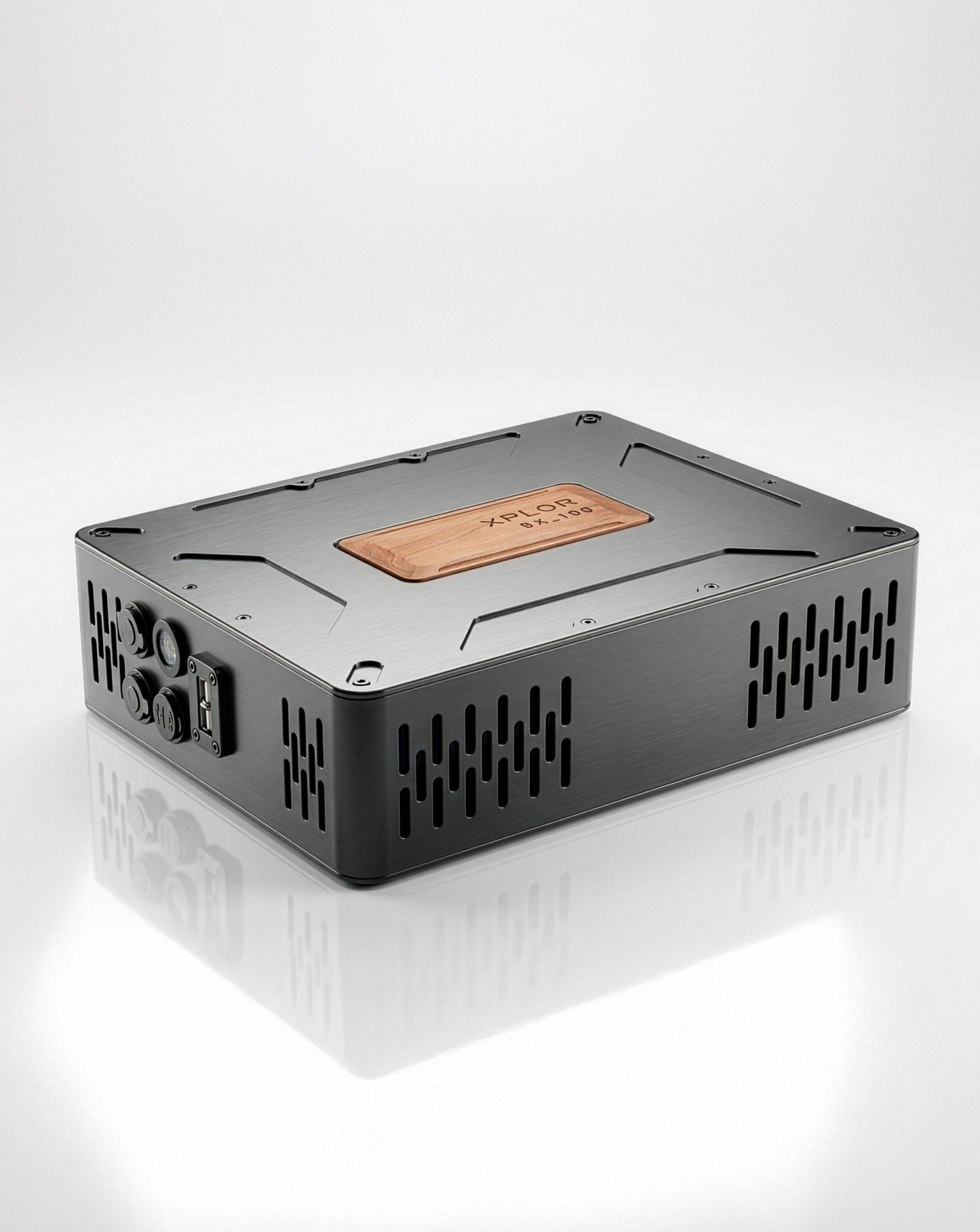

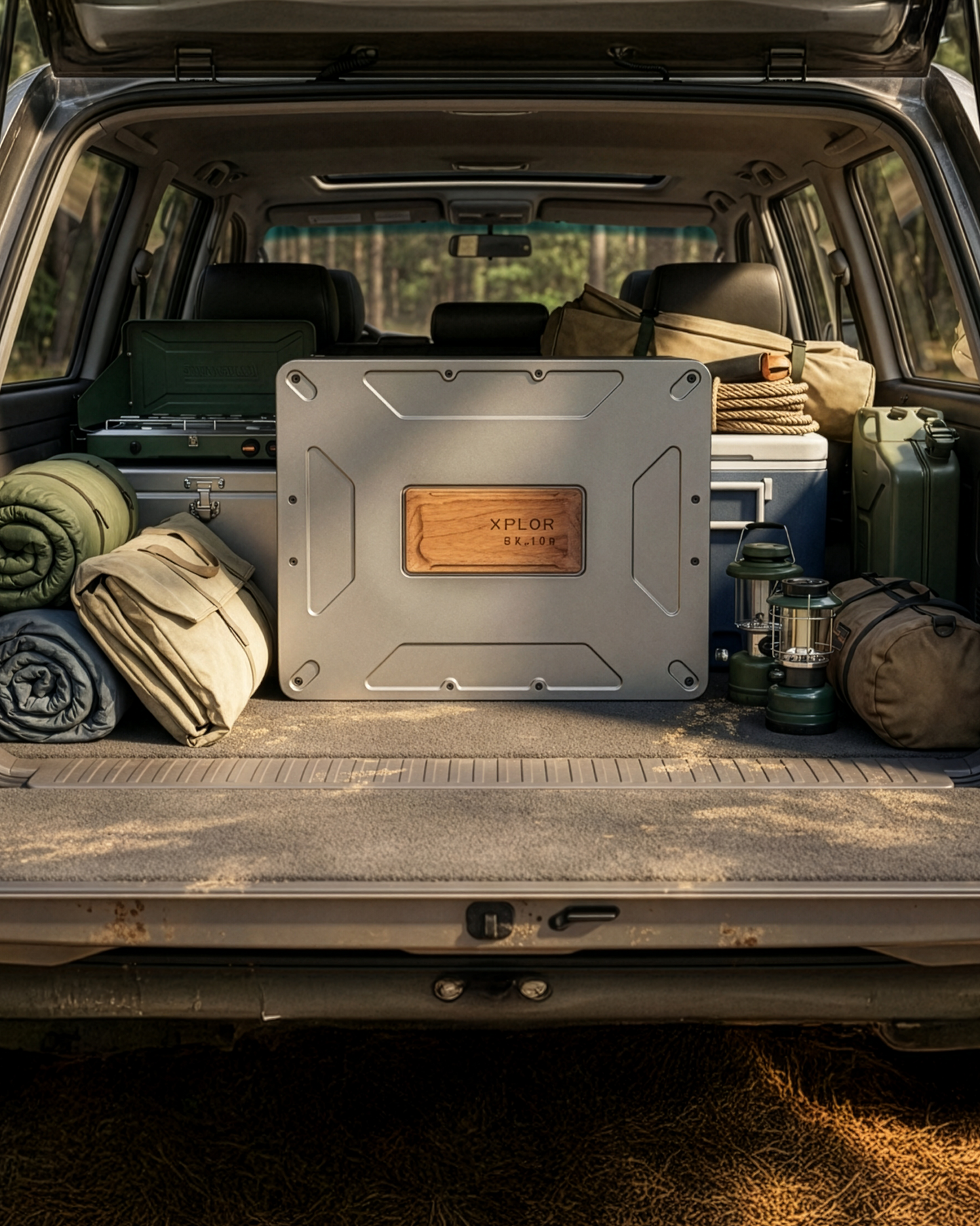

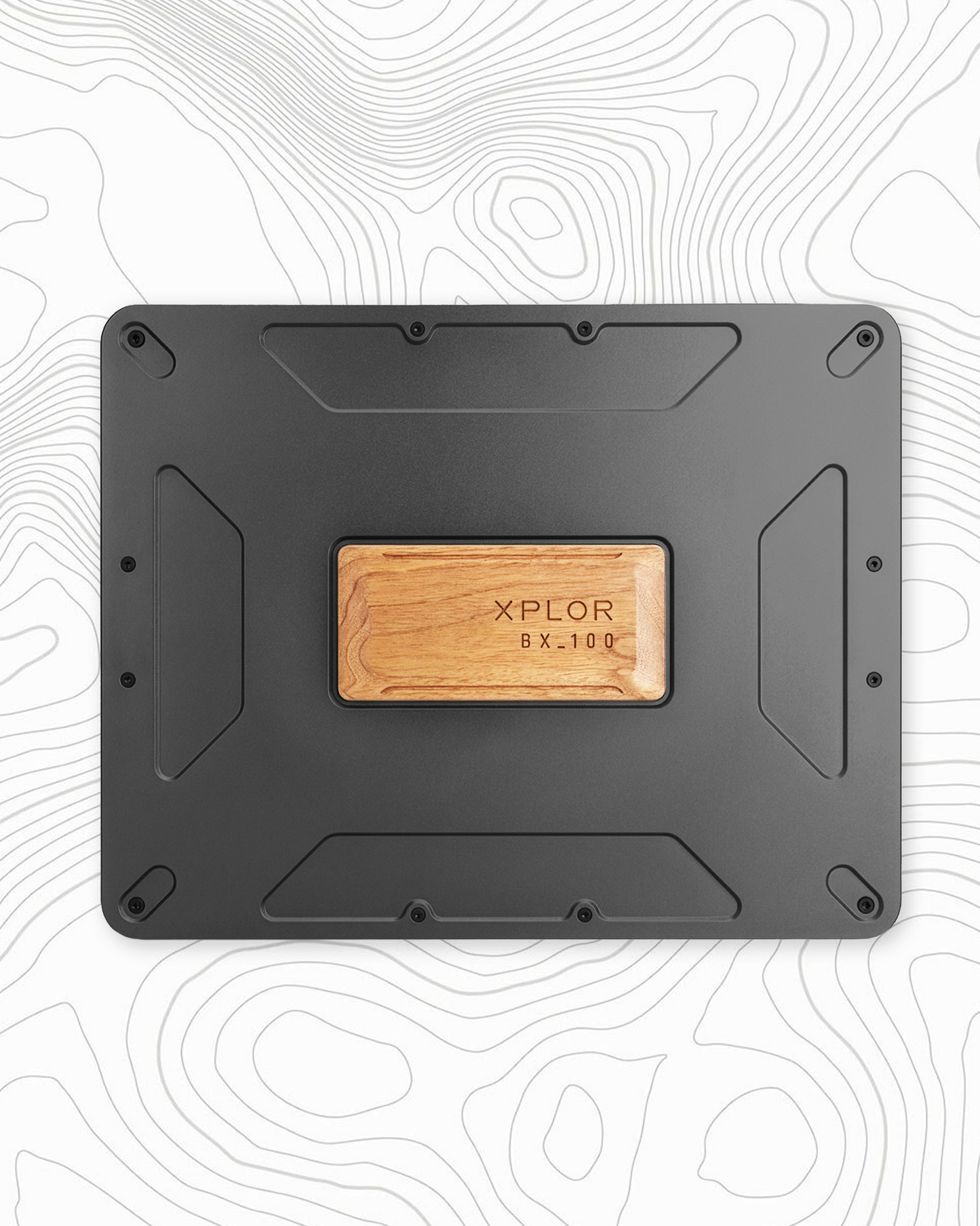

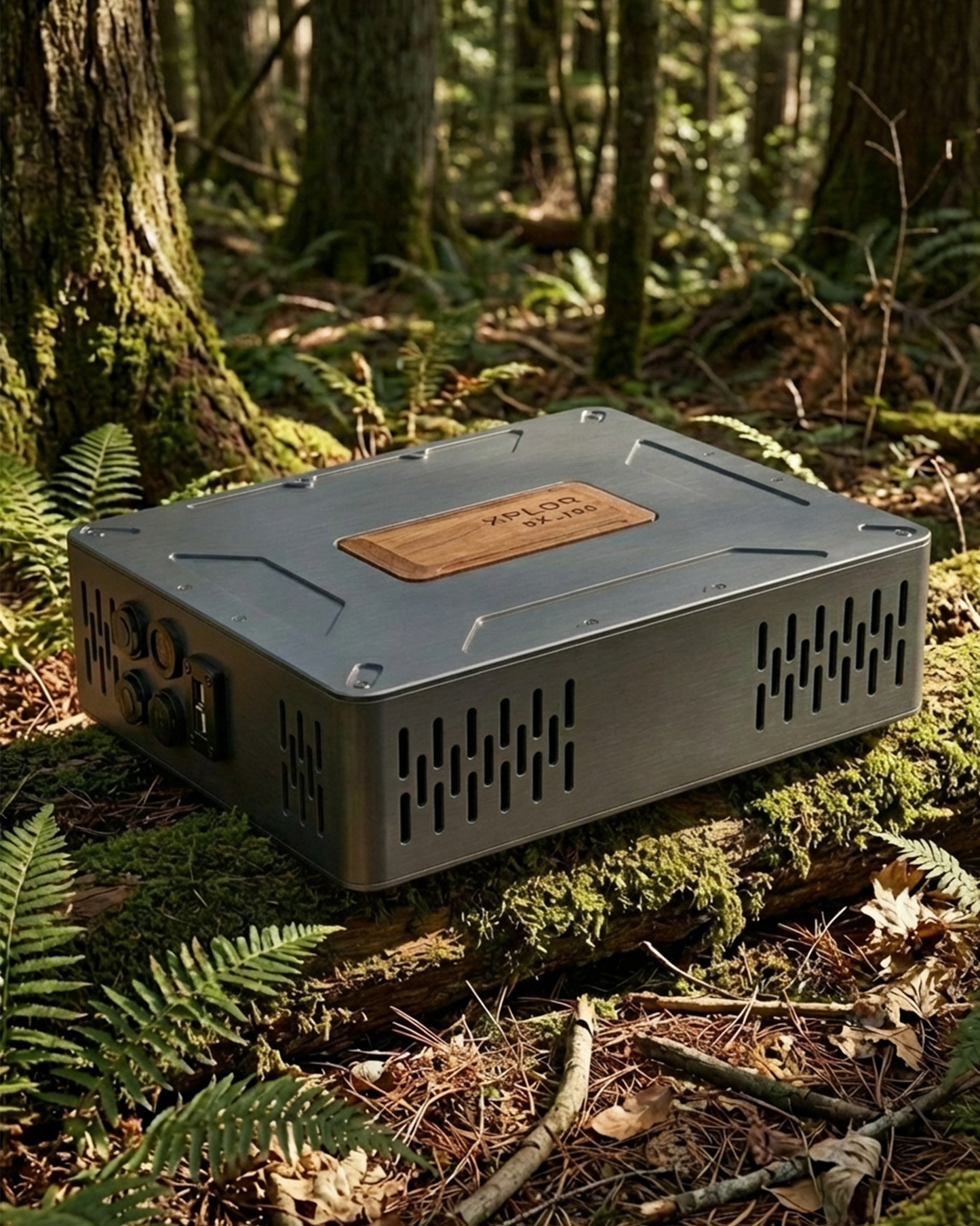

• Slim 6061 aircraft-aluminum case: 30 lb, with a profile that fits tight cargo areas and takes less space than bulky plastic power stations.
• M-LOK mounting: brackets with M-LOK fasteners lock it to a surface. The vent holes double as M-LOK mount points.
• Stays put on rough trails: a bolted-down unit won’t shift or tip over when the vehicle moves.
• Looks like part of the rig: solid metal construction reads as purpose-built vehicle hardware, not a portable gadget sitting in the back.

Right-sized, expandable and serviceable

• Matched to roof solar: the proven Victron 75/15 handles about 200W on a 12V system, which suits a typical compact-vehicle roof without paying for input you can’t use.
• Room to grow: a high-current Anderson output comes straight off the main battery for future expansion.
• Easy to service: remove the front panel to get inside.

Specifications

• Battery: 100Ah LiFePO₄, commercial grade
• DC-DC charger: Victron Orion XS 12/12-50A
• Solar controller: Victron SmartSolar MPPT 75/15
• Inputs: Anderson solar input, Anderson DC-DC input from alternator
• Outputs: 2× 12V socket, 2× USB-A, 1× USB-C, 1× Anderson
• Protection: internal 12V fuse panel, breakers on high-current outputs, 12V kill switch
• Case: 6061 aircraft aluminum, slim profile, M-LOK mounting
• Weight: 30 lb

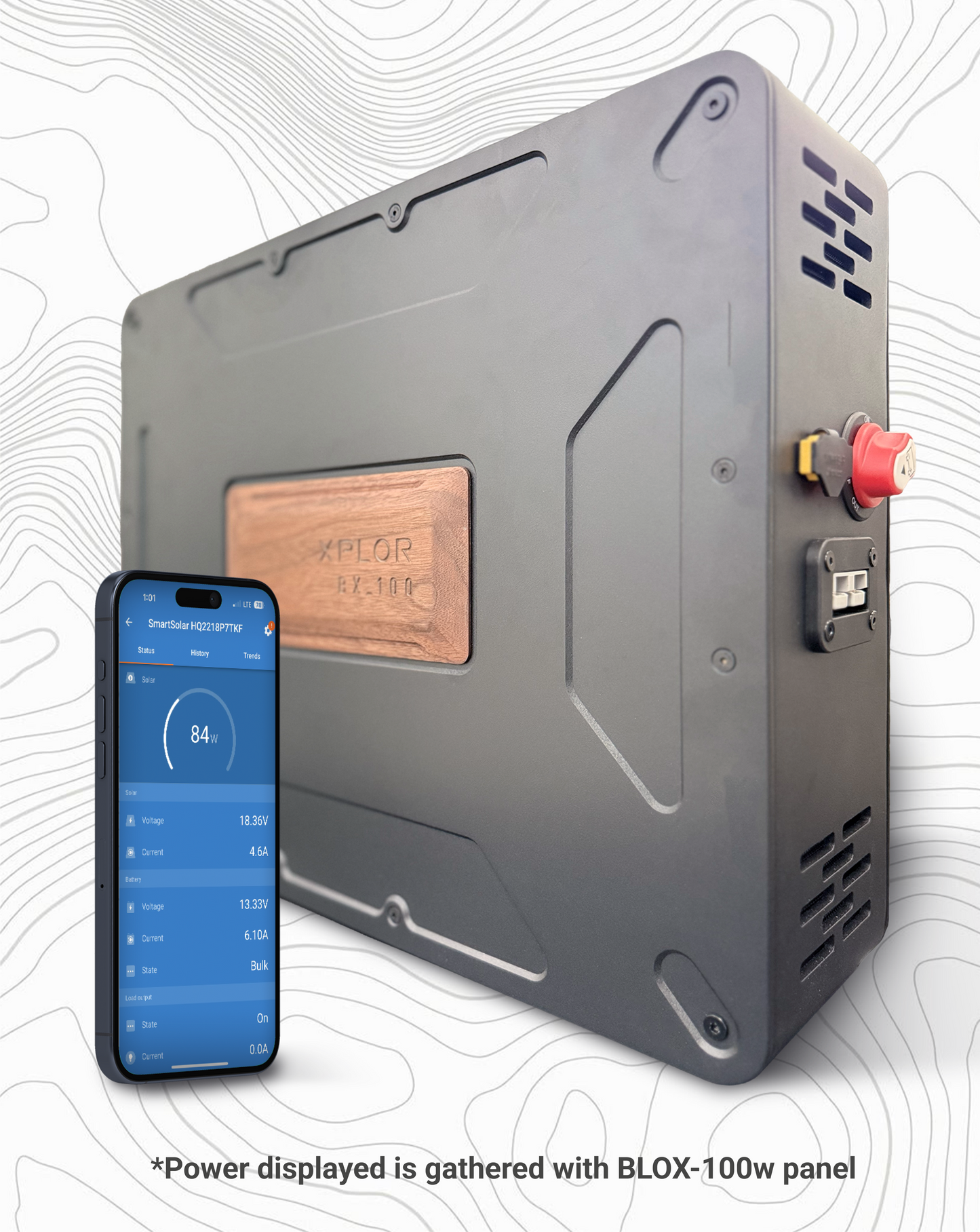

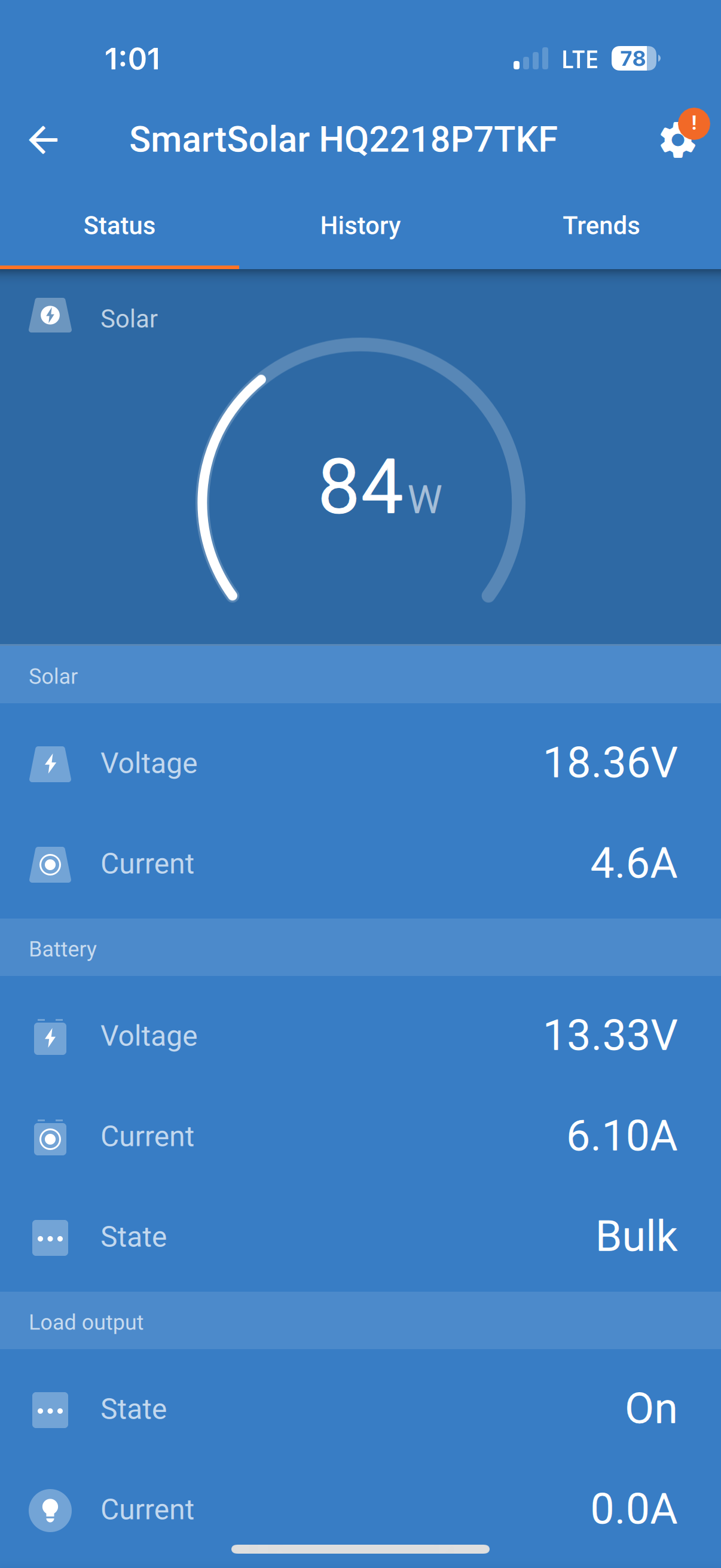

Solar input figure of 84W was recorded during testing of the new BLOX-100W panel.
